PAL Device

Technical Brief · April 2026

Personal AI Lifesaver

Saves lives.
No signal required.

Pocket-sized AI that delivers verified emergency protocols in seconds — for combat medics, first responders, and anyone caught in a crisis without medical training. No signal. No cloud. No failure points.

Prototype Live

Fully Offline

Voice I/O

TCCC Compliant^*

SecondsResponse time

0Fabricated answers

208Protocols indexed

100%Offline

PAL · v2.4 · 2026

* TCCC — Tactical Combat Casualty Care: the U.S. military standard for point-of-injury emergency medicine.

01 — Problem

Emergencies don't wait
for a trained medic.

Most casualties in the field — military or civilian — are treated by someone with no medical training. Even trained medics lose protocol recall under extreme stress. The result: wrong decisions, missed steps, preventable deaths.

Most emergencies happen without a medic present

Car accidents, aviation incidents, maritime emergencies, wilderness — the first person on scene is almost never a trained medical professional.

Even trained medics fail under extreme stress

Cognitive load, darkness, noise, and time pressure degrade protocol recall exactly when correct execution is life-critical.

No offline AI guidance tool exists

Current field aids are static PDFs and laminated cards. No system provides interactive, verified, voice-accessible guidance without a network.

02 — Solution

PAL: a pocket-sized AI
that never loses signal.

PAL runs entirely on-device. Ask a clinical question by voice or text — get a verified, source-cited protocol response in seconds. No internet. No cloud. No latency.

🎙️

Hands-free voice guidance

Ask a question by voice — PAL speaks the answer back. Both hands stay on the patient.

🚑

Auto EVAC priority

PAL tracks vitals, injuries, and time — and calculates evacuation priority in real time: URGENT / PRIORITY / ROUTINE.

📋

TCCC card — auto-filled

Tourniquet times, medications, mechanism of injury, vitals — DD1380 fills itself as the session progresses.

⏱️

Tourniquet timer

Marks application time automatically. Voice alerts at 60 and 90 minutes. Critical detail that's easy to miss under fire.

🛡️

Never guesses

Low-confidence queries return "not found" — not a fabricated answer. PAL stays silent rather than risk a wrong protocol.

📡

Works anywhere

GPS-denied, signal-blocked, jammed, underground, offshore — PAL operates where no cloud-based tool can.

03 — Hardware & Stack

Prototype.

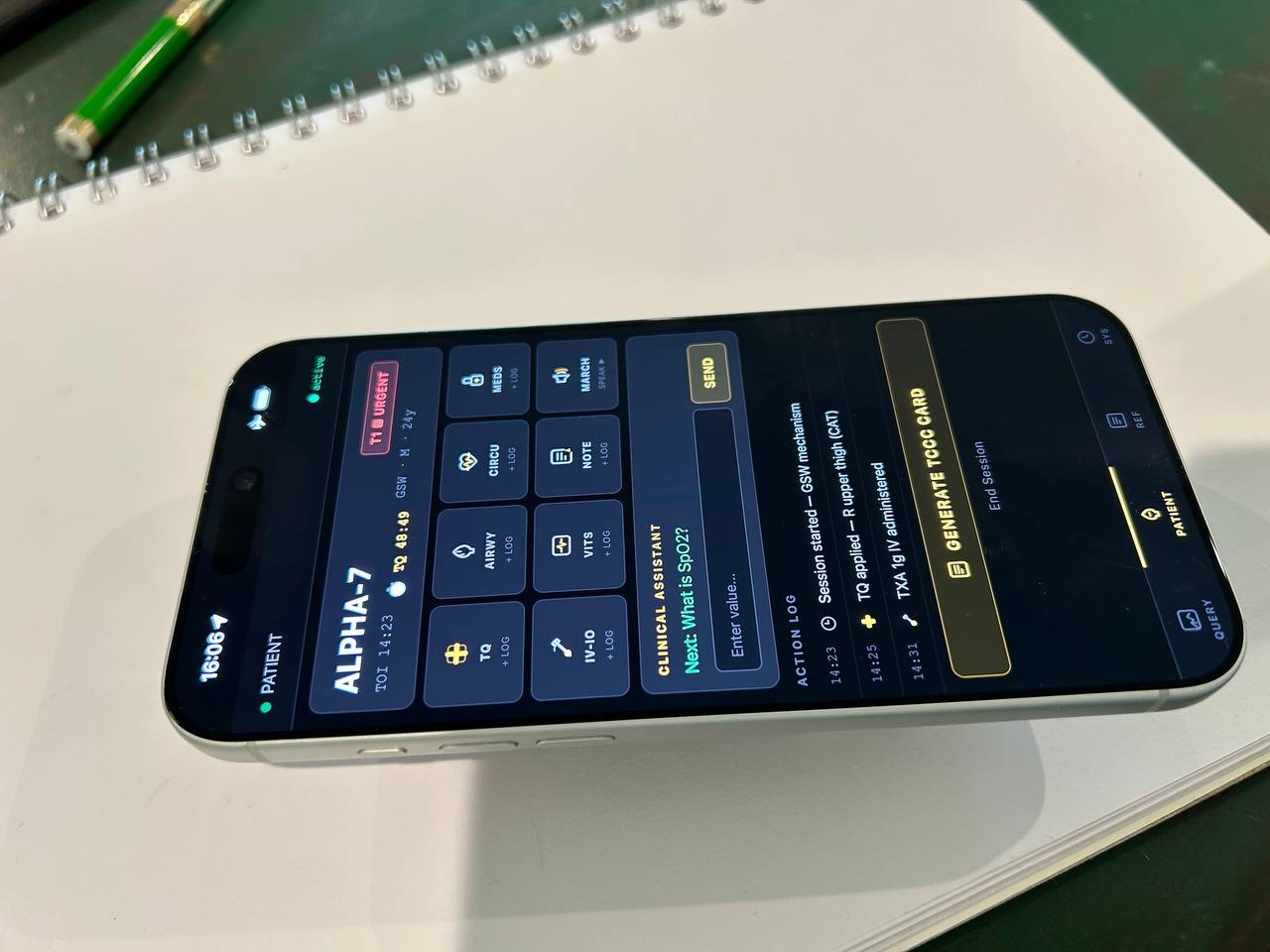

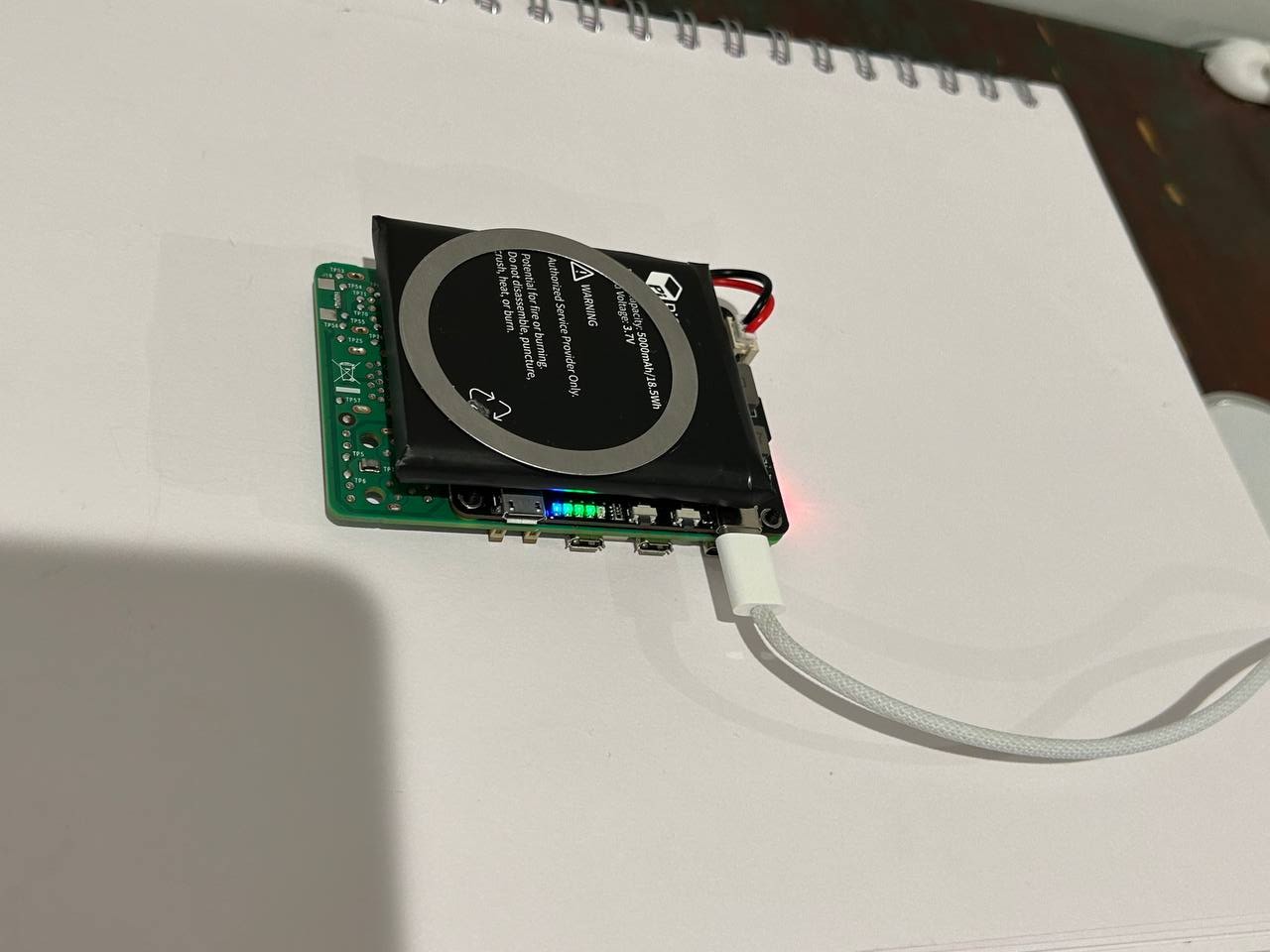

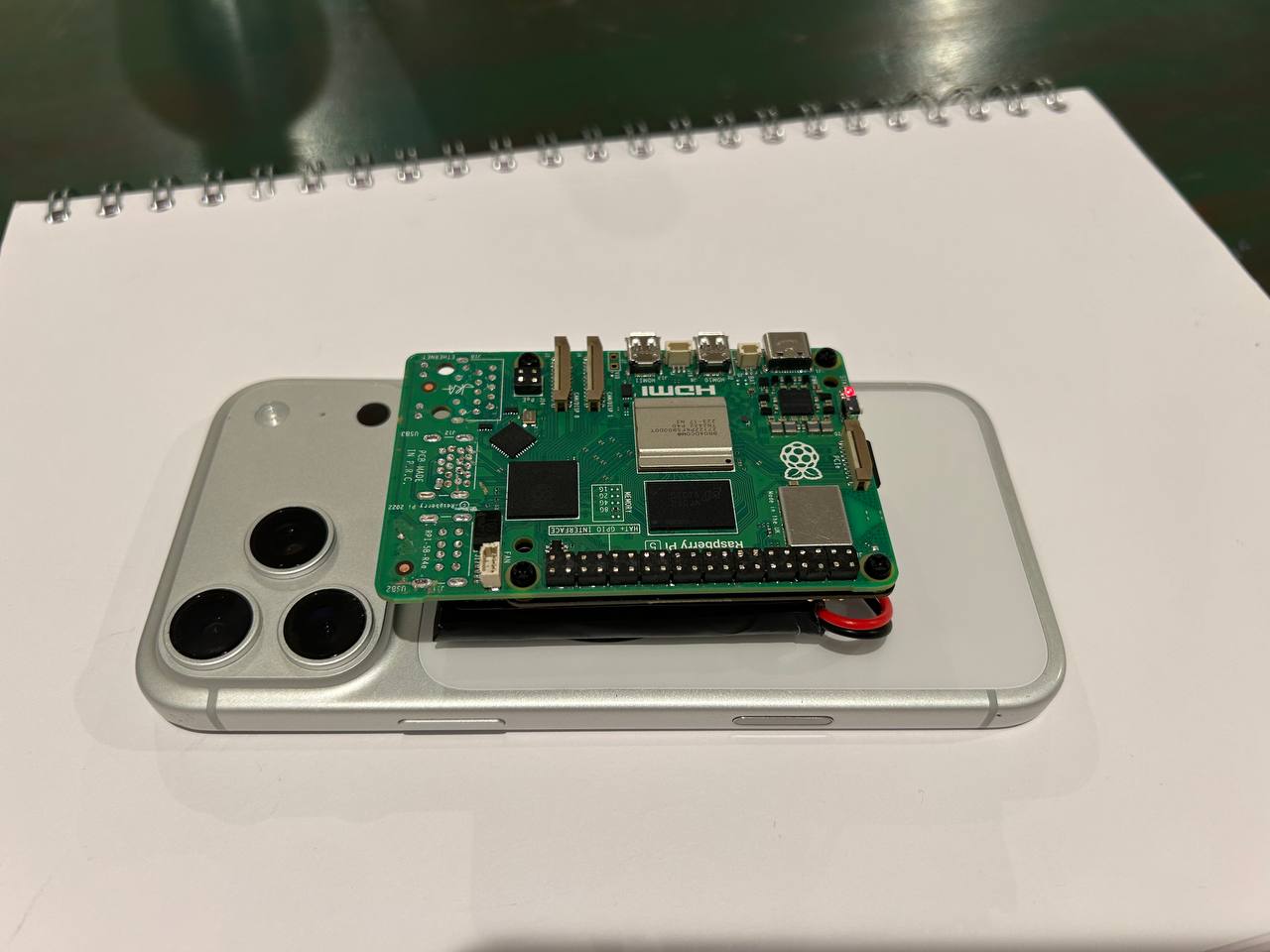

Raspberry Pi 5 — quad-core ARM Cortex-A76 @ 2.4GHz, 8GB RAM. Powered by PiSugar 5000mAh battery with wireless charging. In the prototype, an iPhone acts as the screen, mic, and speaker — by design. No custom silicon required.

Component	Specification	Notes	Status
Hardware	Raspberry Pi 5 Quad-core 2.4GHz ARM Cortex-A76 · 8GB RAM	Under 2W idle · pocket form factor	Active
LLM	phi3:mini · 2.2GB Uncensored · TCCC-capable	Runs fully on-device · no API	Active
Embeddings	nomic-embed-text · 274MB Semantic score 0.87	HNSW index · cosine similarity	Active
Knowledge Base	ChromaDB · 208 documents CoTCCC 2024 · JTS CPG · TCCC field docs	Chunk size 512 · top-2 retrieval	Active
Voice Input	Whisper tiny · WebM/WAV OpenAI · on-device inference	Hands-free operation	Active
Voice Output	Piper TTS · en_US-ryan-high 116MB · ONNX runtime	Authoritative tone · disk-cached	Active
Connectivity	No internet needed PAL creates its own WiFi — phone connects directly to the device, like a router. No cell signal, no GPS, no internet — still works.	GPS-denied · jammed · works	Optional

04 — Performance

Tested against 10 clinical scenarios.
Zero fabricated answers.

Every test case drawn from real field scenarios. Validated against CoTCCC 2024 and JTS CPG protocols. When PAL doesn't know — it says so.

SecondsResponse time

100%Off-topic rejection

208Protocols indexed

10 Demo Cases

GSW thigh — tourniquet protocol 0.916 ✓

Tension pneumothorax — needle-D 0.931 ✓

Airway — NPA & surgical cric 0.935 ✓

Hemorrhagic shock — DCR 0.905 ✓

Burns — field management 0.921 ✓

TBI — field protocol 0.898 ✓

Nerve agent — atropine protocol 0.876 ✓

TXA 1g IV administration 0.840 ✓

Full TCCC scenario — MARCH 0.881 ✓

Off-topic query — rejection test 0.796 → gap ✓

05 — Strategic Fit

Built for those who
can't afford to fail.

PAL maps directly to six key DoD medical AI priorities — offline operation, point-of-injury support, automated documentation, voice interface, zero hallucination, and pocket form factor.

✓

Offline AI for denied environments — zero network dependency, GPS-blocked, jammed — PAL operates where no other AI system can.
✓

Point-of-injury decision support — verified TCCC protocol delivery at the moment of casualty, not at Role 2 or higher.
✓

Automated TCCC documentation — DD1380 auto-filled in real time, reducing documentation burden under fire.
✓

Voice-accessible interface — hands-free operation, critical when the medic's hands are occupied treating a casualty.
✓

Zero hallucination policy — low-confidence queries return "not found" rather than fabricated guidance. Clinical safety is non-negotiable.
✓

Pocket form factor — fits in a standard aid bag. No additional equipment. Deployable anywhere a medic goes.
